Description

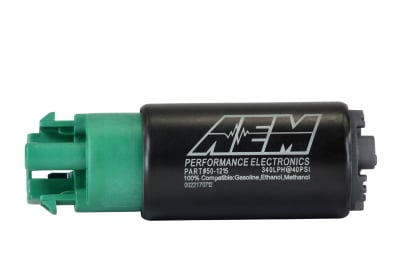

The AEM 50-1215 High Flow In-Tank Fuel Pump is built for high-performance naturally aspirated and forced induction EFI vehicles. Designed for maximum reliability and flow, it delivers exceptional performance at roughly half the cost of comparable high-performance pumps.
Tested to flow 340 LPH @ 40 PSI (320 LPH @ 43 PSI), this pump supports over 1,000 HP at 43 PSI, making it ideal for high-output street or race builds. Its 39mm diameter and offset inlet allow it to fit most factory fuel tanks with ease. Each unit is individually tested to ensure consistent performance.
This pump is compatible with gasoline, ethanol fuels up to E100, and methanol fuels up to M100. It uses a single scroll hard anodized aluminum turbine impeller for durability and precise fuel delivery.
The kit includes the fuel pump, rubber sleeve, end caps, pre-filter, hose, clamps, and a flying lead for universal installation.
Specifications:
| Feature | Specification |
|---|---|
| Flow Rate | 340 LPH @ 40 PSI; 320 LPH @ 43 PSI |
| Fuel Type | Gasoline, Ethanol up to E100, Methanol up to M100 |
| Mounting | In-Tank |
| Diameter | 39mm |
| Inlet | 7.7mm ID / 11.0mm OD Offset |
| Outlet | 8mm Hose Clamp |
| Weight | 10.1 oz (285 g) |
| PRV Activation | 90 PSI |
| Voltage Range | 6V – 18V |
| Current Draw | 12A @ 40 PSI; 15A @ 80 PSI (13.5V) |
| Impeller Design | Single Scroll Hard Anodized Aluminum Turbine |
| Part Number | 50-1215 |
| Max HP Support | 1,000+ HP |
Compatibility Notes:
Ideal for high-output EFI applications running gasoline, E85, or methanol. Fits most applications due to compact diameter and offset inlet design.
