Description

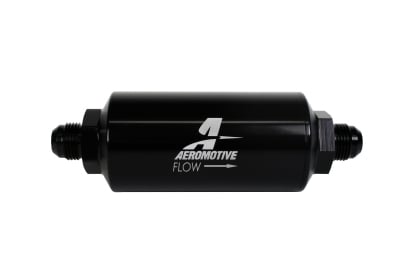

An inexpensive insurance policy for your fuel system, the Aeromotive AN-08 Male 10-Micron Microglass filter provides high-performance filtration with minimal restriction. Designed for 200–3,000+ HP applications, this universal inline filter ensures maximum flow, protection, and durability. Engineered from CNC-machined billet aluminum, it features a serviceable microglass element that captures particles as small as 10 microns, making it ideal for EFI and high-performance fuel systems.
Compatibility Notes:
Universal inline fuel filter designed for AN-08 systems. Suitable for gasoline, ethanol blends, methanol, and race fuels. Works with high horsepower applications (200–3,000+ HP).
Specifications:
| Feature | Specification |
|---|---|
| Part Number | aer12375 |
| Series | Aeromotive Inline Fuel Filters |
| Application | Universal In-Line Fuel Filter |
| Flow Rate | Up to 2000 lb/hr |
| Mounting Type | External (In-Line) |
| Fuel Compatibility | Gasoline, Ethanol blends (up to E85), Methanol, Race Fuels |
| Micron Rating | 10 Micron (Microglass element) |
| Housing Material | CNC-Machined 6061-T6 Billet Aluminum |
| Housing Finish | Black Anodized |
| Dimensions | 5.5” Overall Length x 2.0” Diameter |
| Inlet/Outlet Size | AN-08 Male Threads (ORB) |
| Maximum Fuel Pressure | 70 PSI |
| Filter Element Included | Yes – Serviceable Microglass Element |
| Mounting Bracket Included | No |
| Horsepower Range | 200 – 3,000+ HP |
| Seal Type | O-Ring for positive sealing in high pressure applications |
| Quantity | Sold Individually |
