Description

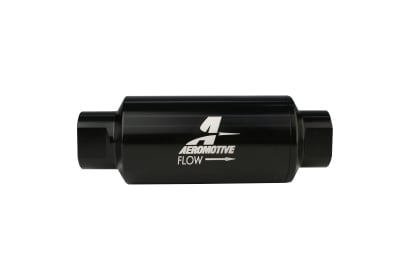

The Aeromotive ORB-10 100-Micron Inline Fuel Filter features a stainless steel mesh element and billet aluminum housing for high-flow protection. With ORB-10 female ports and a compact design, it’s perfect as a pre-pump filter to safeguard high-performance fuel systems from harmful debris.
Specifications:
| Feature | Specification |
|---|---|
| Part Number | AER12324 |
| Application | Universal Inline |
| Micron Rating | 100 Micron |
| Flow Rate | 2000 |
| Mounting Type | External |
| Fitting Type | ORB-10 (Female) |
| Inlet Size | AN-10 |
| Outlet Size | AN-10 |
| Fuel Type | Gasoline, Diesel, Alcohol, E85 |
| Filter Element Material | Stainless Steel Mesh |
| Housing Material | Billet Aluminum (Anodized Black) |
| Length | 5.5 in |
| Diameter | 2.0 in |
| Maximum Fuel Pressure | 70 PSI |
| Universal or Vehicle Specific | Universal |
